Military-Grade

Aramid Anti-Drone Net – High-Strength Kevlar Drone Defense Netting

Military-grade aramid fiber anti-drone netting with ultra-high tensile strength, cut resistance, and weather durability for perimeter drone interception

Aramid anti-drone net intercepting drone in flight
SKU: ADN-ARAMID-MILTensile: 3500 NCut-Resistant
Tensile Strength
3500N
Ultra-high tensile strength per strand
Operating Temp
-50 to +150°C
Extreme temperature endurance
Weight
280g/m²
Lightweight for easy deployment
Mesh Opening
25× 25 mm
Fine mesh for small drone capture

Galería

Aramid anti-drone net deployment at military forward operating base
Military FOB Deployment
Aramid anti-drone net installation at border crossing
Border Security Installation

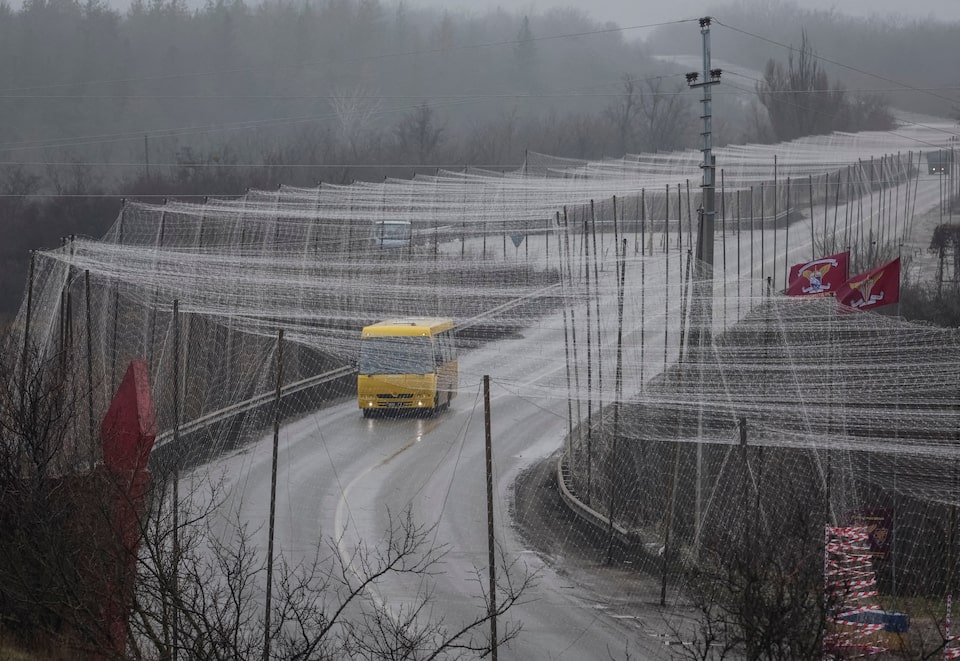

Aramid anti-drone net covering critical infrastructure
Critical Infrastructure Cover

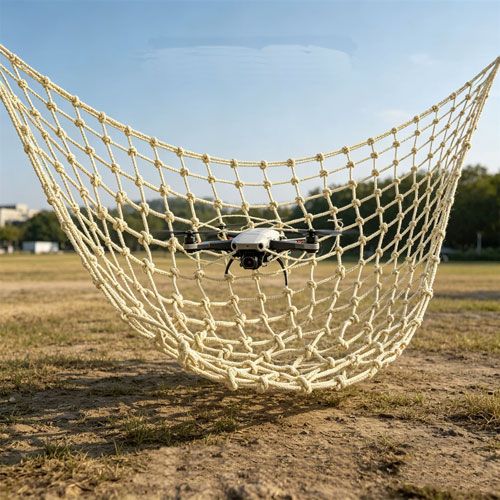

Aramid anti-drone net factory production quality inspection
Factory Quality Control

Product Overview

Military-Grade Aramid Fiber Drone Interception Netting

The DroneXNet Aramid Anti-Drone Net represents the pinnacle of passive drone defense technology. Manufactured from high-tenacity aramid fibers — the same material used in ballistic body armor and aerospace composites — this netting delivers exceptional tensile strength of up to 3,500 N per strand while remaining lightweight and flexible for rapid deployment across any terrain or structure.

Unlike steel-based solutions, aramid fiber netting offers inherent corrosion resistance, non-conductive properties, and reduced weight — making it ideal for environments where radar signature, electrical safety, or load-bearing capacity are concerns. The 25 mm × 25 mm fine mesh opening ensures even the smallest commercial drones are effectively captured, while the material's self-extinguishing properties add an essential layer of fire safety for sensitive installations.

Each net panel is precision-manufactured with reinforced edges, stainless steel grommets, and UV-stabilized coating for extended outdoor service life. Available in standard and custom dimensions, the aramid net can be suspended between poles, mounted on building rooftops, or deployed as standalone interception curtains. With an operational temperature range of -50°C to +150°C and resistance to salt spray, UV radiation, and chemical exposure, this netting delivers reliable drone protection in the world's harshest environments.

Close-up of aramid fiber net weave structure

Aramid fiber weave structure showing high-density drone interception mesh

Tensile: 3500 NCut-ResistantLightweight-50°C to +150°C

Especificaciones

Ficha Técnica

Aramid anti-drone net technical specifications diagram

Aramid Anti-Drone Net Dimensional Diagram

Custom panel sizes available from 5 m × 5 m to 20 m × 20 m and beyond

Dimensiones

Standard panel: 10 m × 10 m. Weight: approx. 28 kg per panel. Custom dimensions from 1 m × 1 m to 50 m × 50 m available upon request. Delivered folded in waterproof packaging.

Made in ChinaISO 9001 CertifiedMIL-STD-810G3-Year Warranty
ParameterValue
MaterialHigh-Tenacity Aramid Fiber (Kevlar® Equivalent, Para-Aramid 1414)
Tensile Strength≥ 3,500 N per strand (ISO 2307)
Mesh Opening25 mm × 25 mm (Square Pattern)
Net Weight280 g/m² (± 15 g/m²)
Operating Temperature-50°C to +150°C (Continuous)
Rope Diameter3 mm – 8 mm Braided Aramid
Standard Panel Size5 m × 5 m / 10 m × 10 m / 20 m × 20 m (Customizable)
Edge ReinforcementDouble-Stitched Reinforced Border with Stainless Steel Grommets (Ø 12 mm)

Características

Características y Ventajas

Hexacopter drone entangled in aramid anti-drone net

Ultra-High Tensile Strength

Each aramid strand delivers ≥ 3,500 N tensile strength — five times stronger than steel at the same weight. The braided rope construction absorbs high-velocity drone impact without rupture, ensuring reliable capture.

Cut & Abrasion Resistant

Aramid fiber's molecular structure provides exceptional cut resistance. Drones attempting to cut through the net with onboard saws or heated wires find the material virtually impenetrable. The net also self-extinguishes upon contact with fire.

Lightweight & Rapid Deployment

At only 280 g/m², the aramid net is easily deployable by a two-person team without heavy equipment. Folds compactly for transport and can be installed on existing structures, poles, or suspended as a curtain system in under 2 hours.

All-Weather Durability

Functions flawlessly from -50°C to +150°C. UV-stabilized coating provides >5 years of continuous outdoor exposure resistance. Inherently resistant to salt spray, chemicals, and microbial degradation — ideal for marine, desert, and tropical environments.

Stealth & Non-Conductive

Available in camouflage colors and low-visibility black. The non-conductive aramid material produces zero radar reflection, maintaining stealth profiles at sensitive military installations. No electrical hazard near power infrastructure.

Get Military-Grade Protection

Solicite una cotización
