Perimeter Security
Anti Drone Fence – Perimeter Drone Containment System
Heavy-duty perimeter fencing system designed to detect, deter, and contain unauthorized drone incursions at critical infrastructure sites
Galería
Prison Perimeter Installation
Military Base Protection
Airport Perimeter Security
Government FacilityProduct Overview
Complete Perimeter Drone Containment Solution
The DroneXNet Anti Drone Fence is a purpose-built perimeter security system designed to prevent unauthorized drone incursions at critical infrastructure sites. Unlike traditional fencing, this system features specialized mesh dimensions and structural reinforcements specifically engineered to intercept, entangle, and ground drones of all sizes — from consumer quadcopters to military-grade UAVs.
Constructed from hot-dipped galvanized steel wire with a minimum tensile strength of 500 N/mm², the fence system offers exceptional durability in outdoor environments. The 40 mm × 40 mm diamond mesh opening is optimized to prevent drone airframe passage while maintaining visibility and airflow. Each fence section is pre-assembled with heavy-duty steel posts, tension wires, and anti-climb extensions for comprehensive perimeter protection.
The system integrates seamlessly with existing security infrastructure including CCTV, motion sensors, and radar detection systems. Standard panel heights range from 4 m to 8 m. With a service life exceeding 15 years and minimal maintenance requirements, the DroneXNet Anti Drone Fence provides the most cost-effective long-term perimeter drone defense solution available on the market.

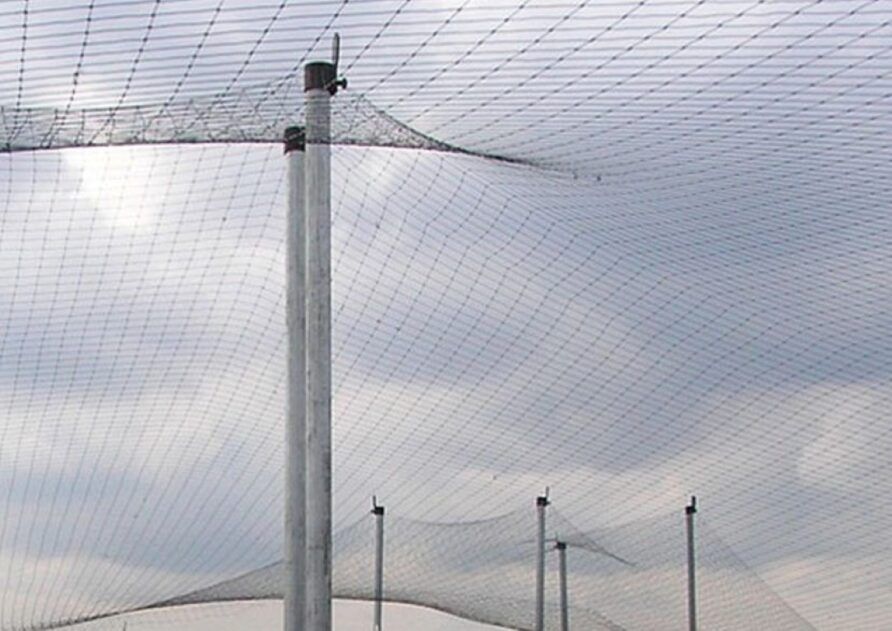

DroneXNet Anti Drone Fence installed around a critical facility perimeter
Especificaciones
Ficha Técnica
Anti Drone Fence Dimensional Diagram
Standard panel dimensions available in 4 m to 8 m heights
Dimensiones
Standard panel: 2500 mm (W) × 6000 mm (H). Weight per panel: approx. 45-65 kg depending on wire gauge. Custom dimensions available upon request.
| Parameter | Value |
|---|---|
| Material | Hot-Dipped Galvanized Steel Wire (AISI 304/316 Available) |
| Wire Diameter | 2.5 mm – 4.0 mm |
| Mesh Opening | 40 mm × 40 mm (Diamond Pattern) |
| Panel Height | 4 m / 5 m / 6 m / 8 m (Customizable) |
| Panel Length | 2.0 m – 3.0 m per section |
| Tensile Strength | ≥ 500 N/mm² (Wire) / ≥ 350 N/mm² (Weld Point) |
| Post Material | Heavy-Duty Steel Tube Ø 60 mm × 2.5 mm (Hot-Dipped Galvanized) |
| Corrosion Protection | Hot-Dip Galvanized (BS EN ISO 1461) / Optional Powder Coating |
Características
Características y Ventajas
Drone-Specific Mesh Geometry
Optimized 40 mm × 40 mm diamond mesh opening ensures drones of all sizes cannot pass through the fence plane. The angled mesh geometry increases entanglement probability on impact, grounding the UAV immediately.
Heavy-Duty Galvanized Construction
Hot-dipped galvanized steel wire (BS EN ISO 1461) provides exceptional corrosion resistance in coastal, desert, and industrial environments. Service lifespan exceeds 15 years with zero maintenance.
Rapid Modular Installation
Pre-assembled panel sections with bolt-together post system enable installation rates of up to 100 m per crew per day. No welding required on site. Full perimeter deployment in days, not weeks.
Anti-Climb & Anti-Cut Extensions
Integrated anti-climb outriggers and razor wire extensions prevent physical breaching. The rigid steel construction resists bolt-cutters and saws, providing both drone and human intrusion deterrence.
Seamless Integration with Security Systems
Designed with mounting points for CCTV cameras, motion sensors, radar units, and acoustic detectors. The fence structure doubles as support infrastructure for layered security systems without additional poles or frameworks.
Aplicaciones
Dónde se Instala
Prison & Correctional Facilities
Prevents contraband drone deliveries and surveillance over prison perimeters
Military Bases & Forward Operating Bases
Protects sensitive military assets from drone surveillance and attack
Airports & Aviation Security
Safeguards runways and terminal perimeters from drone incursions
Border Security
National border protection against cross-border drone smuggling and surveillance
